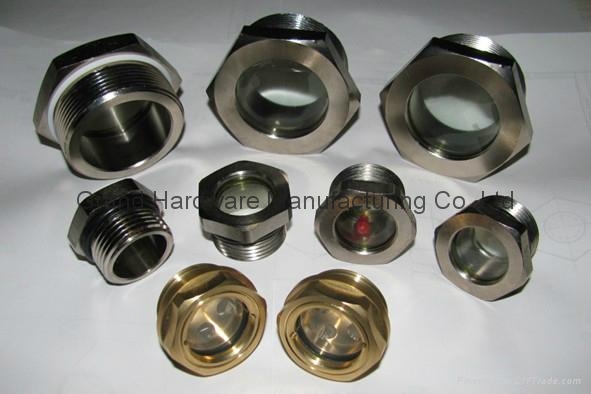

Fused Sight Windows, Fused Window Sights,Fused Sight Glass,fused level sight gauge
Specifications:
Service: Compatible gases and liquids.
Window: nature glass (3mm to 6mm)
Body: Nickel Plated steet,stainless steel 304 and S.S 316
Reflector: S.S 304 Customers can chosed Plastic float Ball.
Temperature: -30'C to 260 'C (500 ‘F).
Max Pressure: 5 MPa
Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)
Size: 1/4" to 2"
Usage: refrigeration machine, compressor,Power Transimission and various machine .
|
|
|
 |

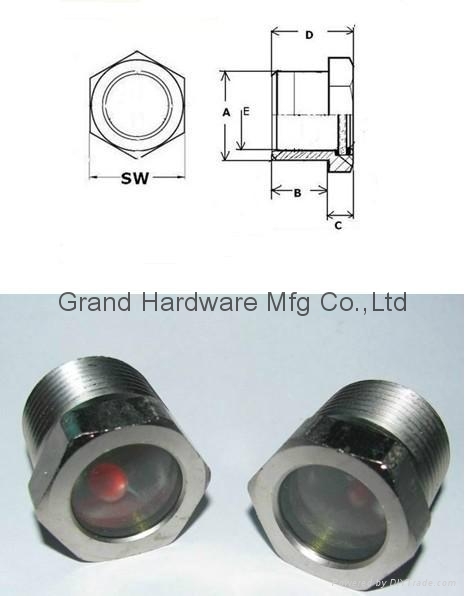

| NPT Thread Fused Window Sights |
| Nickel Plated Fused Glass Window Sights(NPT Thread) |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
SW(mm) |
Max Mpa |
Temperature |
| GM-FN12 |
1/2" |
NPT 1/2" |
14 |
6 |
20 |
14.3 |
24 |
5MPa |
Below Zero 30 to 300 Centigrade |
| GM-FN34 |
3/4" |
NPT 3/4" |
17 |
7 |
24 |
18 |
27 |
| GM-FN10 |
1" |
NPT 1" |
19 |
8 |
27 |
23.5 |
36 |
| GM-FN114 |
1-1/4" |
NPT1-1/4" |
21 |
10 |
31 |
30 |
45 |
| GM-FN112 |
1-1/2" |
NPT1-1/2" |
21 |
10 |
31 |
36.5 |
50 |
| GM-FN20 |
2" |
NPT 2" |
23 |
11 |
33 |
44.5 |
64 |
|
|
|
 |

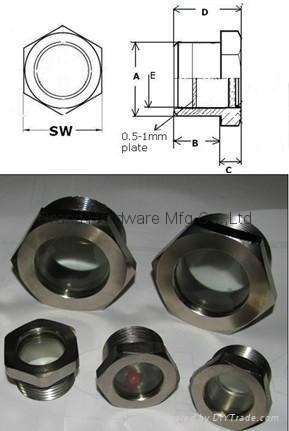

| BSP Thread Fused Sight Glass |
| Nickel Plated Fused Glass Window Sights(BSP Thread) |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
SW(mm) |
Max Mpa |
Temperature |
| GM-FG12 |
1/2" |
G 1/2" |
10 |
8 |
18 |
14.5 |
27 |
5MPa |
Below Zero 30 to 300 Centigrade |
| GM-FG34 |
3/4" |
G 3/4" |
14 |
8 |
22 |
18 |
32 |
| GM-FG10 |
1" |
G 1" |
18 |
8 |
26 |
25 |
38 |
| GM-FG114 |
1-1/4" |
G 1-1/4" |
21 |
10 |
31 |
30 |
44 |
| GM-FG112 |
1-1/2" |
G 1-1/2" |
22 |
10 |
32 |
36.5 |
55 |
| GM-FG20 |
2" |
G 2" |
25 |
10 |
35 |
44.5 |
65 |
|
|
|
 |
| UNF Fused Sight Glass |
| Nickel Plated Fused Glass Window Sights(UNF Thread) |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
SW(mm) |
Max Mpa |
Temperature |
| GM-FFU118 |
1-1/8" |
FUNF 1-18" |
9 |
20 |
29 |
21 |
32 |
5MPa |
Below Zero 30 to 300 Centigrade |
| GM-FU118 |
1-1/8" |
UNF 1-1/8" |
11 |
6 |
17 |
22 |
35 |
| GM-FU114 |
1-1/4" |
UNF 1-1/4" |
17 |
6 |
23 |
22 |
40 |
|
|
|
 |
| Metric Thread Fused Sight Glass |
| Nickel Plated Fused Glass Window Sights(Metric Thread) |
| Item No. |
Size |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
SW(m) |
Max Mpa |
Temperature |
| GM-FM16 |
M16 |
M16x1.5 |
7.5 |
5 |
12.5 |
12 |
22 |
5MPa |
Below Zero 30 to 300 centigrade |
| GM-FM18 |
M18 |
M18x1.5 |
7.5 |
5 |
12.5 |
14 |
24 |
| GM-FM12 |
M22 |
M22x1.5 |
10 |
8 |
18 |
14 |
27 |
| GM-FM24 |
M24 |
M24x1.5 |
11 |
8 |
19 |
18 |
32 |
| GM-FM27 |
M27 |
M27x1.5 |
12 |
8 |
20 |
23 |
36 |
| GM-FM30 |
M30 |
M30x1.5 |
12 |
8 |
20 |
23 |
37 |
| GM-FM33 |
M33 |
M33x1.5 |
15 |
8 |
23 |
24 |
40 |
| GM-FM36 |
M36 |
M36x1.5 |
16 |
8 |
24 |
28 |
45 |
| GM-FM42 |
M42 |
M42x1.5 |
15 |
10 |
25 |
33 |
55 |
| GM-FM52 |
M52 |
M52x1.5 |
16 |
8 |
22 |
39 |
50 |
| GM-FM60 |
M60 |
M60x2 |
25 |
10 |
35 |
44.5 |
70 |
|
|
|
 |

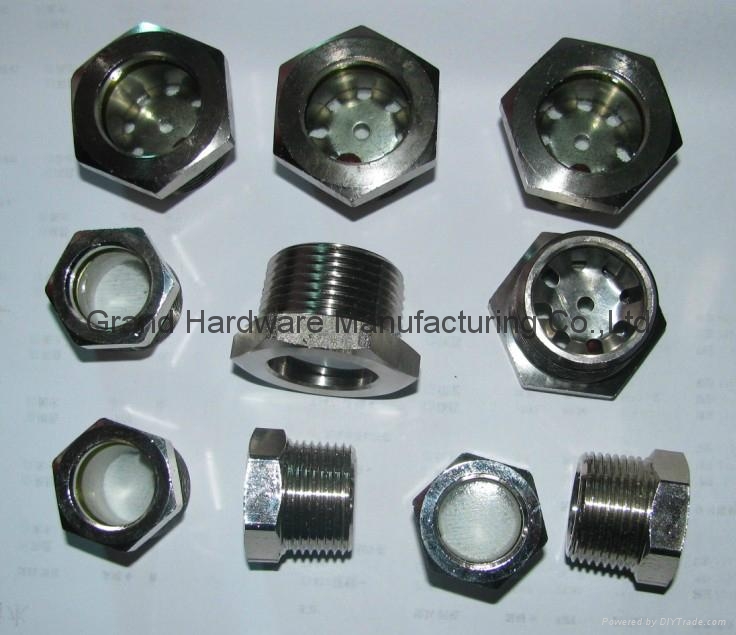

| Fused Window Sights Without Reflector |
| |
 |

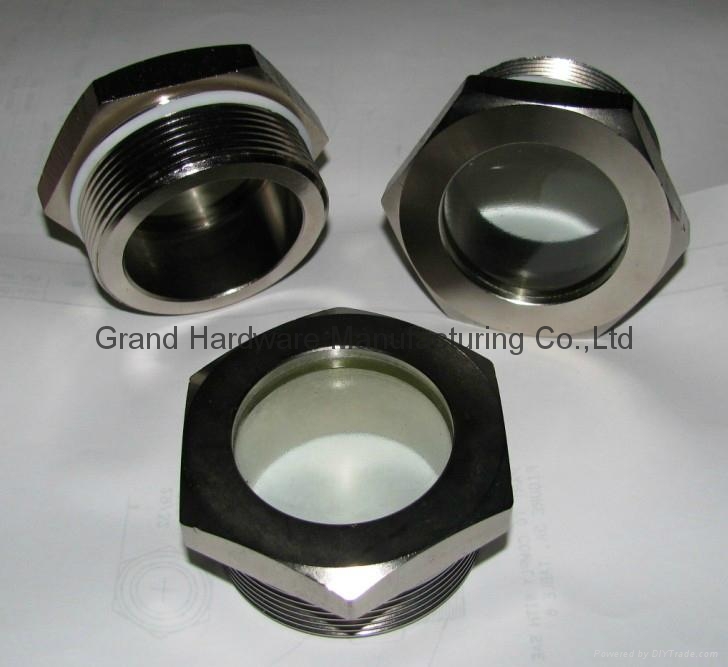

| G 2" Fused Sight Glass |
|
|
|
|
| |
 |
| NPT Thread Fused Sight Windows |
|
|
|
|
|
|
Flange fused sight glass
flange sight glasses are used widely to observe the liquid medium inside of refrigeration machine, compressor and various machine.
Technical parameter:
Working pressure: 2.5, 4.0Mpa
Working temperature: -40 degree to 200 degree
Temp difference impact data: -40 degree to 180 degree
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
